IR-762 Energy Modulator

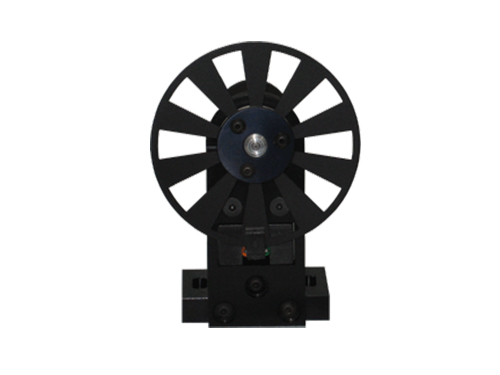

The IR-762 Energy Modulator is a variable speed rotating disk chopper designed for use with radiation sources, including blackbody, tungsten filament, mercury lamps, Nernst glowers and as part of instruments where modulated radiation is needed. The IR-762 has been specially designed to integrate with the IR-508 & IR-518 Blackbody Sources. For other applications a table mount is available. The IR-762 Energy Modulator system consists of the modulator head assembly and modulator controller. The controller operates the motor, blade rotation, and speed of the modulation frequency.
Blade Types: | |||
Freq Range |
Number of Slots |
Maximum Aperture |
Jitter |
20 Hz – 200 Hz | 2 |
1.85” | +/- 0.2º max |
20 Hz – 1 KHz | 10 |
0.40” | +/- 1º max |
60 Hz – 3 KHz | 30 |
0.13” | +/- 3º max |
SYSTEM SPECS |
|||||
---|---|---|---|---|---|
FEATURE | SPECIFICATION | ||||
Dimensions | 5.8”W x 2.8”H x 12.5”D |
||||
Input and Output Connectors | BNC’s |
||||
Frequency Control | Up/Down Keypad Switches |
||||
Mode Control | Keypad Switch Enable with LED Illuminated Selection |
||||
External Control | Keypad Switch Enable with LED Indication |
||||
Input Power Connection | IEC Connector with US style power cord |
||||
Weight | 5lbs (10 lbs. Shipped weight) |
||||
Operating Temp | 10-40º C |
||||
Display Type | Green LED Segments |
||||
No of Digits | 4 |
||||
Frequency Resolution | 1 HZ |
||||
762 HEAD | |||||
Motor | 11 pole dc motor, sleeve bearing, precious metal brushes |
||||
Ambient Temp | -20ºC to + 65ºC |
||||
Optical Sensor | High speed, IR LED Phototransistor Switch |
||||
Finish | Non-reflective Mil-A-8625E Type II black anodized |
||||
POWER SUPPLY | |||||
Supply Type | Linear |
||||
Voltage Selection | 115 / 230 VAC |
||||
Input Voltage | 110 / 115 VAC +/- 10%, 230VAC +/- 10% |
||||
Line Frequency | 50-60Hz |
||||
Input Power | 20VA MAX |
||||
Fuse Ratings | 250mA @ 115VAC |
||||
Fuse Type | IEC60127-2/III (250V, Slow Blow Type ‘T’) |
