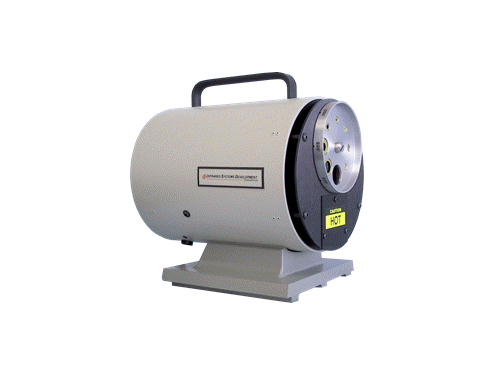

IR-563/301 Blackbody SystemThe perfect blend of innovative design and state of the art technology
IR-563/301 Blackbody System
IR-563 is a ideal source for the Near (1-3 um), Mid (3-8) and Far (8-30+ um) infrared bands. The IR-563 has been the industry standard 1000º C blackbody for more than 30 years, and continues to provide excellent service to infrared applications throughout the industry. The IR-564 extends the temperature range of the IR-563 to 1200º C by changing cavity materials to Silicon Carbide and high purity Alumina ceramics, otherwise the two units are virtually identical.
The 20º tapered - recessed - cone, surface emissivity, and cavity apsect ratio combine to provide blackbody radiation by multiple reflection, absorption and re-emission of it's thermal energy. The thermal energy of the cavity is provided by a ceramic-sealed heater coil that uniformly heats the cavity cylinder to temperatures from 50º C to 1050º C. The IR-563 system has a full, two-year warranty due to the reliability of actual field units used over the last 30 years.
SYSTEM SPECS |
|||||
---|---|---|---|---|---|
FEATURE | SPECIFICATION | ||||
Temperature Range | 50 – 1050 C |
||||
Emittance Watts/Cm^2 (Watts) | 17.36 (88) |
||||
Wavelength Range | 0.5 - 99um |
||||
Emitter Size: in (mm) | 1" (25.4) |
||||
Source Type | Cavity |
||||
Temperature Resolution | 0.1 C |
||||
Calibration Accuracy | +/- 0.2 C to NIST Standard |
||||
Stability: Short (Long) Term | +/- 0.1 C (+/- 0.2C)
|
||||
Response Time | > 100-1000 <45 Minutes |
||||
Temperature Sensors | Embedded 0.01% Matched Type S |
||||
Control Type | Active Multi-Band P.I.D. |
||||
Line Voltage | 90 to 125 or 208-240 VAC 50-60 Hz |
||||
Power Requirements | 550 Watts Max |
||||
Cable Length | 8 Feet (2.4 m) |
||||
Dimensions: in (mm) Source | 11.75” H x 11.4” D x 8” W (298x289x203) |
||||
Controller | 5.1"H x 13.4"D x 12"W (130x340x304) |
||||
Warranty | 2 Year |
||||
Standard Apertures | 0.0125, 0.025, 0.050, 0.10, 0.20, 0.40, 0.60 and 1.0 In |
||||
Remote Interface | RS-232 or IEEE-488/GPIB |
||||
Weight | Source: 17lbs Controller: 9 lbs (Rackmounted 10 lbs) |
||||
Shipping Weight | 2 Boxes; 35 lbs |
